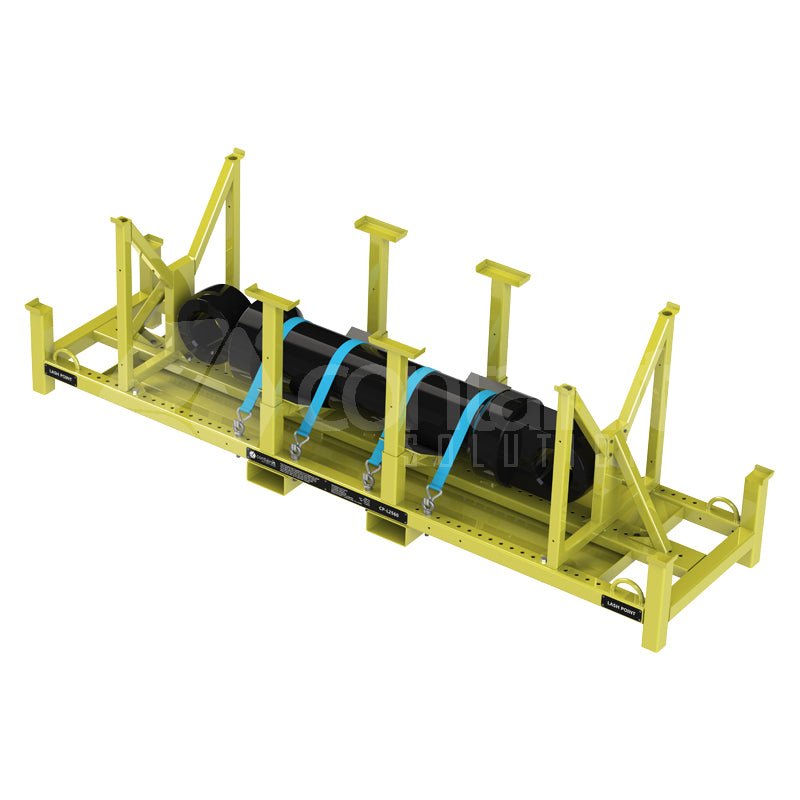

Cylinder Transport and Storage Pallet

Our innovative cylinder pallet system allow maximum flexibility for sites looking to improve safety and ease of storage and transport of their cylinders. Not only are these an economical solution, they allow you to comply with safety requirements and improve the efficiency of your operations. The adjustability provides maximum flexibility.

• 3000 kg WLL capacity
• Can accommodate cylindrical loads 900 mm to 2500 mm long, and 200 mm to 600 mm diameter
• Overall dimensions L 3176 mm, W 826 mm, H 1000 mm

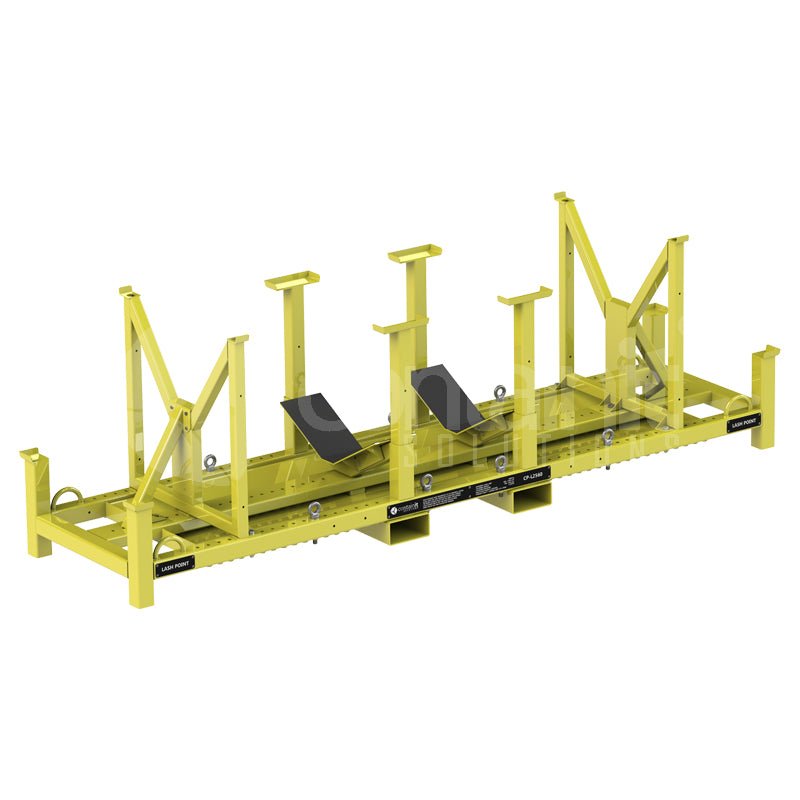

• Rubber-lined cylinder chocks to protect the cylinder surface. Chocks are 200 mm wide with easy bolt-on replacement
• High-tensile end stop frames for transport safety, repositionable along the length of the unit in 50 mm increments
• Comes with 8 galvanised repositionable tie down points for strapping
• Integrated drip tray with a drain plug at each end for easy capture and drainage of oil
• Forklift compatible, with full length tyne pockets to prevent tipping

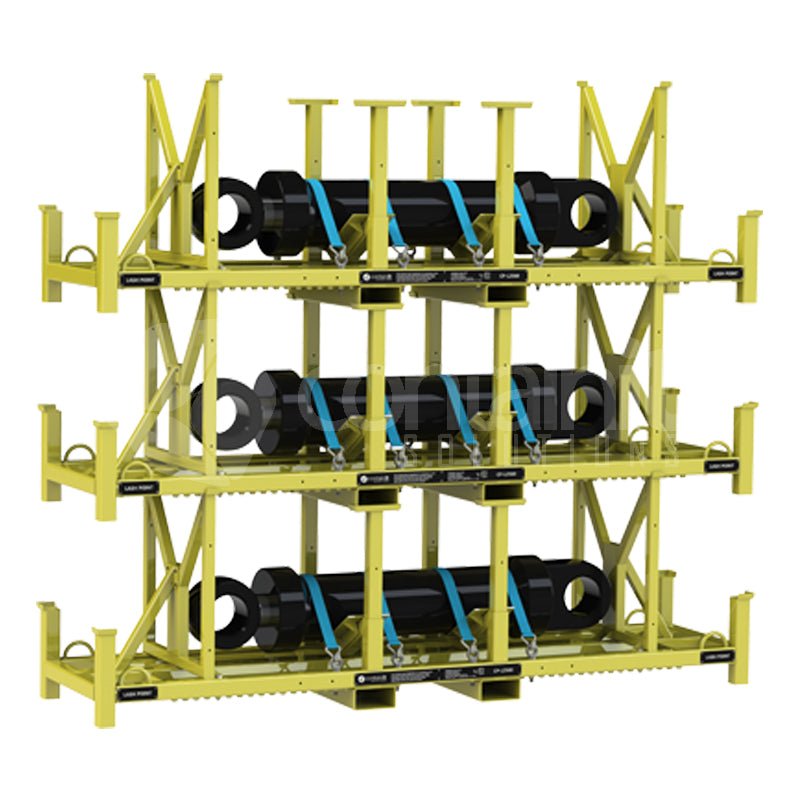

• Stackable fully loaded up to 3 units high (for storage only)
• Integrated lashing points for safe road transport
• Yellow powdercoated finish for high visibility and corrosion protection
• Fully structurally engineered and rated for road transport, satisfying strength and stability requirements according to AS 4100:2020, AS/NZS 1664.2:1997, AS/NZS 1170.0:2021, and the Heavy Vehicle (Mass, Dimension, and Loading) National Regulation of 2018
